Product Characteristics
- Hard surface oxidation treatmentenhances the surface hardness of thecylinder body,does not deform,is compressive and durable, and has along service life
- High-quality seals,self-1ubricating seals,strong sealing performance,
- wear-resistant and not easy to leak,prevent air blow-by in the left andright chambers
- Riveted structure,not loose,piston rod and piston adopt rivetedstructure,with magnetic piston,stable work
- Imported guide rail,precise guide,linear guide rail,linear guide bearing, improve the accuracy of piston rodnon-rotation
Specification
|
Inside diameter(mm) |
6 |
10 |
16 |
20 |
||
|
Acting type |
Double acting |
|||||
|
Fluid |
Air(to befiltered by 40μm filter element) |
|||||
|
Operating pressure |
0.2-0.7MPa(29~100psi)(2.0~7.0bar) |
0.15~0.7MPa(22~100psi)(1.5~7.0bar) |
||||
|
Proof pressure |
1.2MPa(175psi)(12.0bar) |
|||||
|
Temperature ℃ |
-20~70 |
|||||
|
Speed range mm/s |
50~500 |
|||||
|
Allowable kinetic energy(J) |
0.006 |
0.025 |
0.05 |
0.1 |
||
|
Stroke tolerance |
+60 |
|||||
|
Cushion type |
Bumper |
|||||
|
Sensor switches [Note1] |
CMSH,DMSH,EMSH |
|||||
|

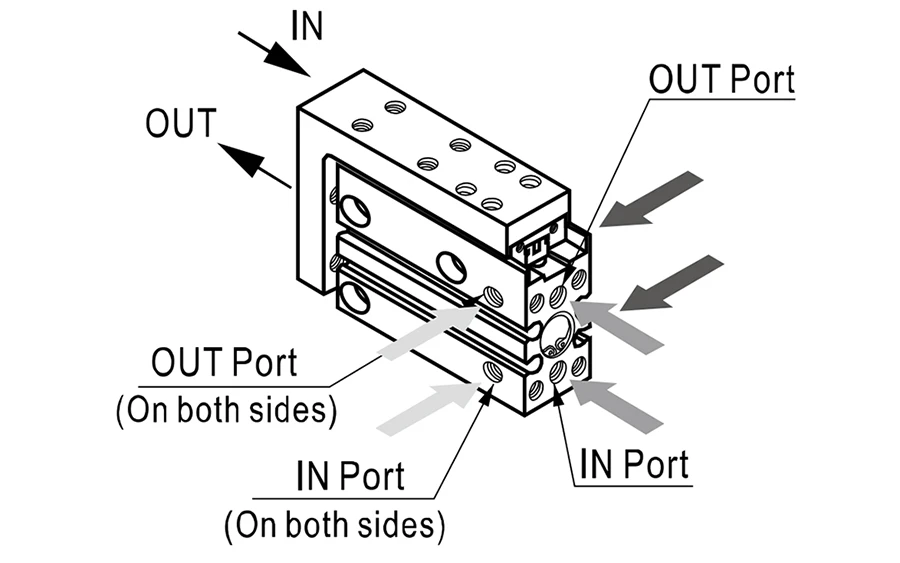

Port size |
M5×0.8 |
|||||
Journey
|
Inside diameter(mm) |
Standard stroke(mm) |
Maximum stroke |
|
6 |
5 10 15 20 25 30 |
30 |
|
10 |
5 10 15 20 25 30 35 40 45 50 |
50 |
|
16 |
5 10 15 20 25 30 35 40 45 50 55 60 |
60 |
|
20 |
5 10 15 20 25 30 35 40 45 50 55 60 |
60 |
[Note]
Consult us for non-standard stroke.
Installation And Use
- Dirty substances inthe pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of impurities into the cylinder.
- The medium used by cylinder should be filtered to 40μm or below.
- Anti-freezing measure shall be adopted under low temperature environment to prevent moisture freezing.
- If the cylinder is dismantled and stored for a long time,pay attention to conduct anti-rust treatment to the surface.Anti-dust caps shall be added in air inlet and outlet ports.
