Overview

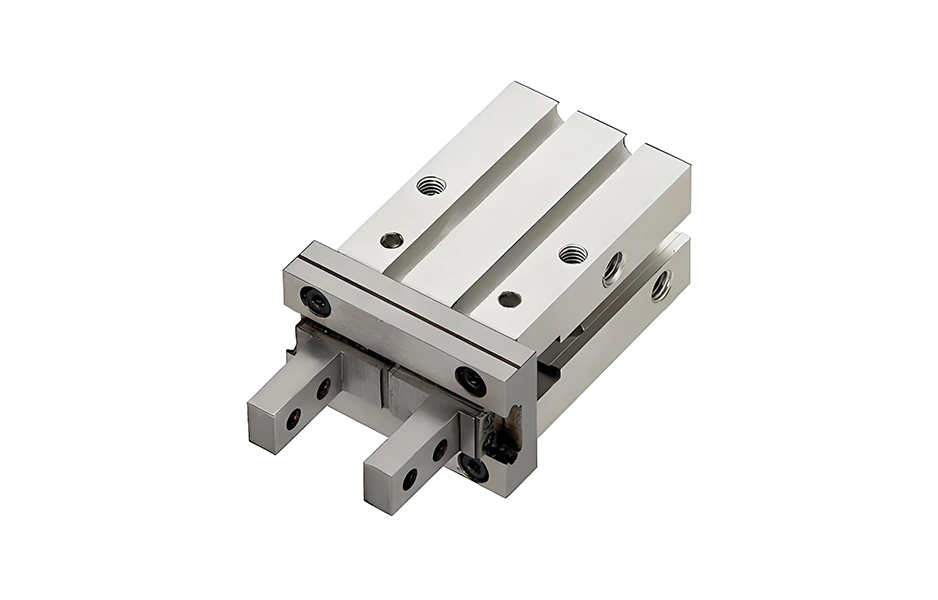

MHZ2 parallel air gripper is a pneumatic gripper widely used in industrial automation, which is famous for its high rigidity, high precision and versatility.
Product characteristics
High rigidity linear guide: MHZ2 series air grippers use an integrated high rigidity linear guide design with two positioning pins to prevent slippage, thus ensuring the stability and accuracy of the air grippers during operation.
High precision: This series of air claw has high repeatability, up to ±0.01mm, which meets the strict requirements for precision clamping.
Versatility: The MHZ2 air claw is mounted in five configurations on three sides, providing great installation flexibility, which is easy for users to select and adjust according to actual needs.
Dust-proof and drip-proof structure: air claw adopts dust-proof and drip-proof design, which can maintain stable performance in harsh working environment and extend service life.
Optional dust cover: Users can choose different materials according to the need of dust cover, such as chloroprene rubber, fluorine rubber and silicone rubber, to adapt to different working environments.
Working principle
The working principle of MHZ2 parallel air claw is to drive the claw finger to translate in a straight line or open and close around a fulcrum through the transmission mechanism on the piston rod of the finger cylinder, so as to achieve the function of clamping or releasing the work piece. When the air source enters the cylinder, the piston rod extends and drives the transmission mechanism to move, so that the claw fingers open or close.
Specifications
|
Fluid |
Air |
||
|
Operating pressure |
Double acting |
ø6: 0.15 to 0.7 MPa ø10: 0.2 to 0.7 MPa ø16 to ø40: 0.1 to 0.7 MPa |
|
|
Single acting |
Normally open |
ø6: 0.3 to 0.7 MPa ø10: 0.35 to 0.7 MPa ø16 to ø40: 0.25 to 0.7 MPa |
|
|
Normally closed |
|||
|
Ambient and fluid temperature |
–10 to 60℃ |
||
|
Repeatability |
ø6 to ø25: ±0.01 mm ø32, ø40: ±0.02 mm |
||
|
Max. operating frequency |
ø6 to ø25: 180 c.p.m. ø32, ø40: 60 c.p.m. |
||
|
Lubrication |
Not required |
||
|
Action |
Double acting/Single acting |
||
|
Auto switch (Option) |
Solid state auto switch (3-wire, 2-wire) |
||
Application field
MHZ2 parallel air claws are widely used in various automated production lines and mechanical equipment, such as automobile manufacturing, electronic assembly, food processing, packaging machinery and other fields. They can stably and reliably grip work pieces of various shapes and sizes, improving production efficiency and product quality.
Summary
MHZ2 parallel air gripper is a kind of pneumatic gripper with high rigidity, high precision and versatility, which is widely used in various industrial automation fields. Its stable and reliable performance and flexible selection of specifications make it one of the preferred products for many users.
